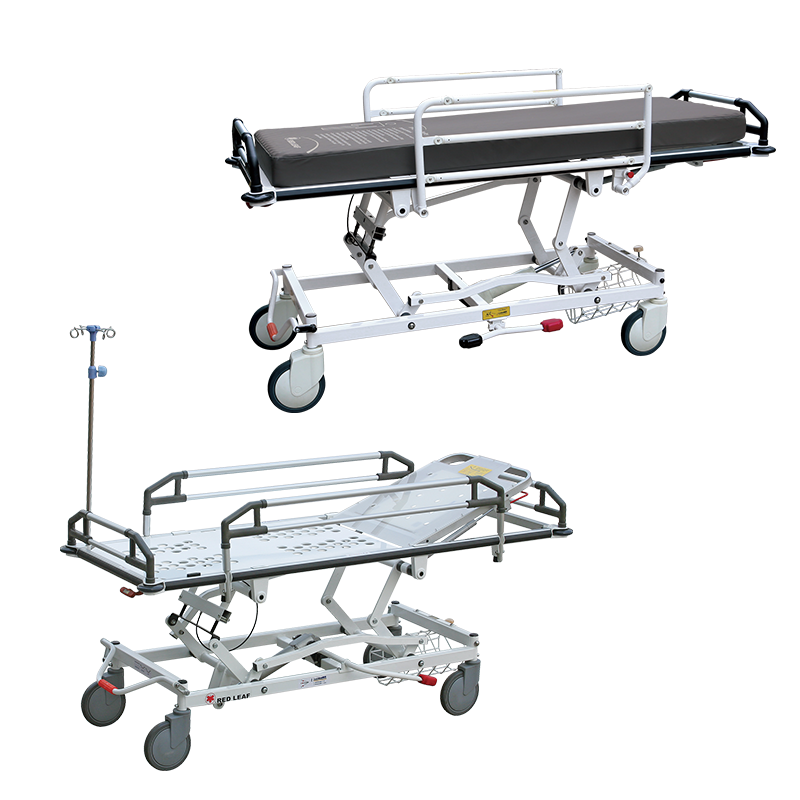

Transfer Stretcher YQC-3M/3M1
- The emergency bed is mainly made of steel and aluminum material
- It used for transport patients between operating rooms in hospital.
- The bed adopts hydraulic lifting mechanism, the height of the bed can be adjusted freely
- The front and rear angle of the bed can be changed freely through operation handle, the angle of front is 13°, the angle of rear is 10°
- Mat is sewed high density polyethylene coated PVC material,built-in peak sponge. Thickness 10cm.
- Equipped with I.V. Stand, The length is 90cm
- The universal wheels can be controlled in three positions by front and back foot pedal: go straight, universal, locked.
- Wheel size: 200mm.
Parameter of YQC-3M/3M1

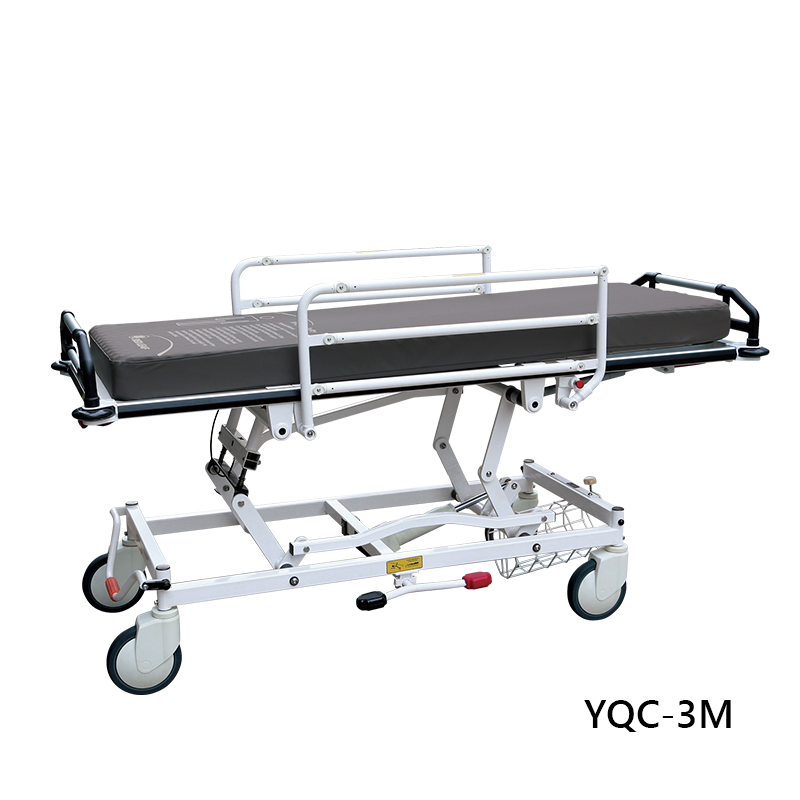

YQC-3M:
High Position（L*W*H）:207*79*82cm
Low Position（L*W*H）:207*79*51cm
Size of the Castors: Ø200mm
Maximum Angle of the Back：65°
Self-Weight：86kg
Load Bearing：227kg
Packing Quantity：1
Packing Size（L*W*H）：215*84*76cm
Packing G.W：96kg

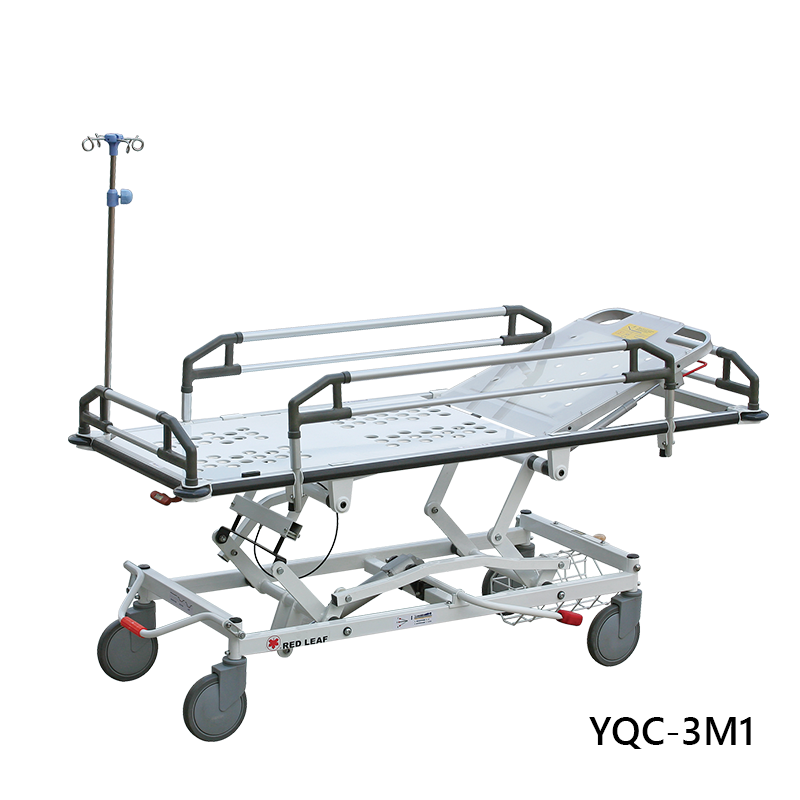

YQC-3M1:
High Position（L*W*H）:207*79*82cm
Low Position（L*W*H）:207*79*51cm
Size of the Castors: Ø200mm
Maximum Angle of the Back：50°
Self-Weight：81kg
Load Bearing：227kg
Packing Quantity：1
Packing Size（L*W*H）：215*84*76cm
Packing G.W：91kg
